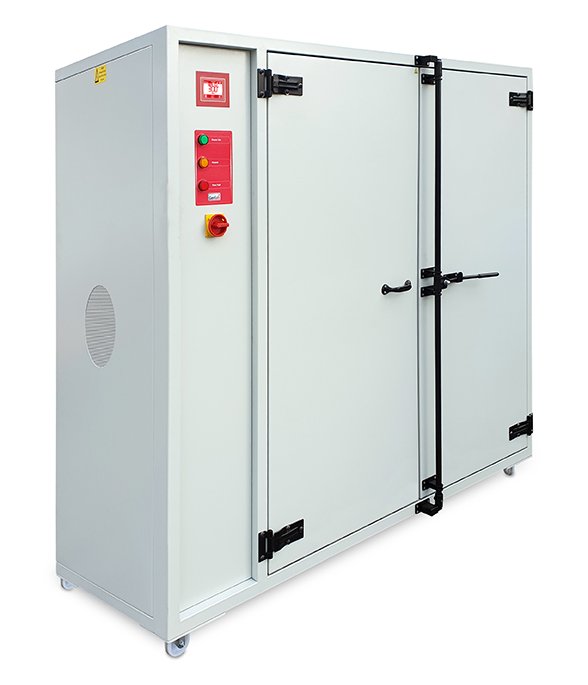

Prime Series XL Large Capacity Multi-Purpose Oven Horizontal Twin Door 535 Litre MAS 1103

Product Code: PRO/500H/TDIG

Capacity: 535 Litres

Temperature Range: 50ºC to 250ºC

Temperature Control: Touchscreen interface with 8 Stage profile control, countdown timer, 24/7 real-time clock & set point lock

Safety System: Manual or automatic overheat reset, high accuracy Pt100A duplex sensors (<0.6ºC)

Indicators & Display: Touchscreen with on-screen 48-hour historical trending & integral energy meter

Chamber Convection: Fan Assisted Circulation

Chamber Construction: 304 Stainless Steel Interior

Exterior Construction: Structural frame with powder-coated clad panels covering heavy duty insulation

Heating Elements: Incoloy sheathed elements in side fan duct

Shelves Fitted & Positions: 5 shelves fitted / 7 positions

Power / Wattage: 4500W / 415V (3 Phase)

Weight: 330 kg

External Dimensions: 121h x 142w x 88d cm

Internal Dimensions: 91h x 92w x 64d cm

Ordering

All units have a stainless steel interior with a touch screen interface with all the timer features enabled as standard.

Where options are required, simply add the option code to the original reference.

E.g. PRO/1250/TDIG with extended temperature range and stainless steel exterior becomes PRO/1250/TDIG/300/SSE

Contact sales for bespoke options.

Option codes

10 Menu x 8 Stage Profile Controller with Cyclic feature – 10PRO
Extended Temp Range 300ºC – 300
Stainless Steel Exterior – SSE
Access Ports – AP
Explosion Relief Panels – EXP
Traceable Calibration – SPC
3 Point Traceable Calibration – 3PC
Stands – STAND
Extractor Systems – EXT
Extended Warranty – X1
3 Phase Upgrade – 3PH
Integral Data Logger – ITL
Fan Speed Controller – FSC
